Mechanical Calibration
As you can see, the breadth of our capabilities allows us to respond to the diverse mechanical calibration which covers sub-parameters Dimension, Pressure, Mass & Volume, Force, Torque, etc. Lawkim also offers vibration, density, acoustics, acceleration and speed calibration. Lawkim also offers vibration, density, acoustics, acceleration and speed calibration, under their mechanical calibration services.
Our calibration ensures that their equipment and instruments will perform at their optimal level, every time.
| Offerings | Technical Specification | Description |
|---|---|---|
| Tachometer / RPM measurement - contact Type | 10 RPM to 100 RPM | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45-02 |
| Tachometer / RPM measurement -contact Type | 100 RPM to 1000 RPM | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45-02 |
| Tachometer / RPM measurement - contact Type | 1000 RPM to 8000 RPM | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45-02 |
| Tachometer / RPM measurement -Non contact Type | 10 rpm to 1000 rpm | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45-02 |
| Tachometer / RPM measurement -Non contact Type | 1000 RPM to 10000 RPM | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45-02 |
| Tachometer / RPM measurement - Non contact Type | 10000 RPM to 50000 RPM | Using Digital Tachometer (Non contact Tachometer with RPM source) by Comparison method / By Using SANAS TR45- 02 |
| qSound Level meter@1kHz | 114 @1kHz dB | Using sound level calibrator , direct method |
| Sound Level meter@1kHz | 94 @1kHz dB | Using Sound calibrator by comparison method |
| Air Ring Gauge | 100 mm to 180 mm | Using LMM |
| Air Ring Gauge | 3 mm to 100 mm | Using Length measuring M/C |
| Angle Gauges | 0 ° to 180 ° | Using Sine bar , Electronics Probe, Lever dial , Surface plate , Gauge Block( 0- Grade) |
| Angle Plate / Box Angle Plate ( Flatness , Parallelism, Sqaureness) | Upto 450 mm | Using Surface plate , Master cylinder , Lever Dial , Height gauge , Jacks |
| Bevel / Degree Protectors LC= 0.01°/ 5 minutes | 0 ° to 180 degree | Using Angle gauges set,Dial indicator, Height Gauge, Master Cylinder and surface plate |
| Bore Gauges (2 Point) Transmission Accuracy Check) LC=0.001 mm | upto 2 mm | Using Length measuring M/C |

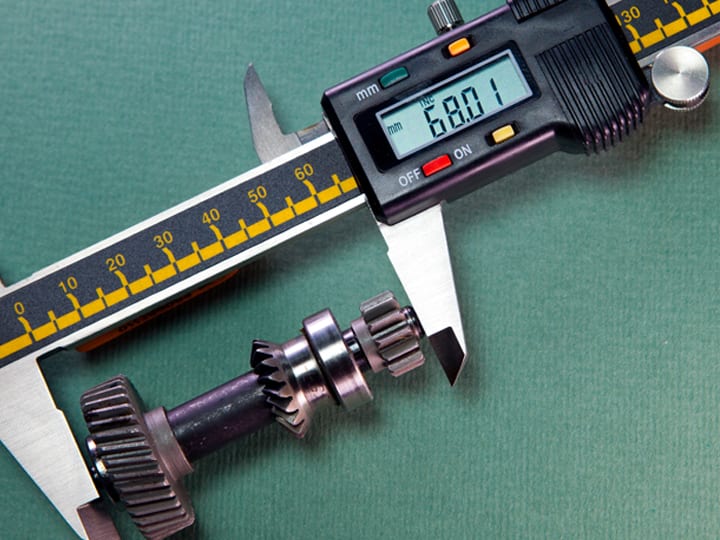

| Caliper ( Vernier , Dial , Digital) LC=0.01 mm | 0 to 1000 mm | Using Length Bar , Gauge Block(0- Grade) , Digital Micrometer |
| Caliper ( Vernier , Dial , Digital) LC=0.01 mm | 0 to 300 mm | Using Caliper checker , Gauge Block(0 Grade) |
| Caliper ( Vernier , Dial , Digital) LC=0.01 mm | 0 to 600 mm | Using Caliper checker , Gauge Block(0 Grade) , Digital Micrometer |
| Caliper ( Vernier , Dial , Digital) LC=0.02 mm | 0 to 1000 mm | Using Length Bar , Gauge Block(0- Grade) , Digital Micrometer |
| Caliper ( Vernier , Dial , Digital) LC=0.02 mm | 0 to 1800 mm | Using Length Bar , Gauge Block(0- Grade) , Digital Micrometer |
| Coating Thickness Gauge LC=0.1/1 micron | 0 to 0.8 mm | Using Coating/ Master Foils |
| Combination set LC= 1° | 0 degree to 180 degree | Using Angle Gauges |
| Cylindrical Setting Standard | 0.5 mm to 100 mm | Using Length measuring M/C |
| Cylindrical Setting Standard | 100 mm to 150 mm | Using Length measuring M/C , Gauge Block ( 0 Grade) |
| Cylindrical Setting Standard | 100 mm to 200 mm | Using Length measuring M/C , Setting Plug |
| Depth Micrometer L.C =0.001 mm | 0 to 150 mm | Using Gauge Blocks (0- Grade), Surface Plate |
| Depth Micrometer L.C =0.001 mm | 0 to 25 mm | Using Gauge Blocks (0- Grade),Surface Plate |
| Dial Caliper - External , LC= 0.01 mm | 0 to 50 mm | Using Gauge Block (0- Garde) |
| Dial caliper- Internal | 10 mm to 150 mm | Using Digital Micrometer |
| Dial Indicator ( Lever Type)) L.C =0.001 mm | 0 to 0.14 mm | Using Length Measuring M/C |
| Dial Indicator ( Lever Type)) L.C =0.002 mm | 0 to 0.60 mm | Using Length Measuring M/C |
| Measuring Tape CalibrationDial Indicator ( Lever Type)) L.C =0.01 mm | 0 to 1.0 mm | Using Length Measuring M/C |
| Pin Gauge Set CalibrationDial Indicator ( Plunger type) L.C =0.01 mm | 0 to 100 mm | Using Length Measuring M/C |
| Dial Indicator ( Plunger) L.C =0.001 mm | 0 to 50 mm | Using Length Measuring M/C |
| Dial Indicator ( Plunger) L.C =0.001 mm | 0 to 25 mm | Using Length Measuring M/C |
| Dial Thickness Gauge LC=0.01 mm | 0 to 50 mm | Using Gauge Blocks ( 0- Grade) |
| Dial Thickness Gauge LC=0.1 mm | 0 to 100 mm | Using Gauge blocks ( 0- Garde) |
| Dial Thickness Gauge / Dial Caliper LC=0.001 mm | 0 to 12 mm | Using Gauge blocks ( 0- Garde) |
| Electronics Level LC= 0.01 mm/mtr | upto 10 mm/mtr | Using Robust Tilting Table , Electronics level |
| Engineer Square/ Cylindrical Square - Squareness | upto 600 mm | Using Surface plate , Master cylinder , Gauge Block ( 0- Grade) |
| External Micrometer (Digital/Plain/Analog/ Blade/Pitch/Pointed Flange/ Groove) L.C =0.001 mm | 0 to 150 mm | Using Gauge Blocks (0- Grade) , Optical flat, Set of Optical Parallels |
| External Micrometer (Digital/Plain/Analog/ Blade/Pitch/Pointed Flange/ Groove) L.C =0.001 mm | 0 to 25 mm | Using Gauge Blocks (0- Grade) , Optical flat, set of 4 Optical Parallels |
| External Micrometer (Digital/Plain/Analog/ Blade/Pitch/Pointed Flange/ Groove) L.C =0.01 mm | 1000 mm to 1800 mm | Using Length Bar , Gauge Blocks (0- Grade) , Optical flat, set of 4 Parallels |
| External Micrometer (Digital/Plain/Analog/ Blade/Pitch/Pointed Flange/ Groove) L.C =0.01 mm | 150 mm to 1000 mm | Using Length Bar , Gauge Blocks (0- Grade) , Optical flat, set of 4 Optical Parallels |
| Feeler gauge/ Coating Foils | Up to 3 mm | Using Length measuring M/C |
| Hegman Gauge | Upto 100 µm | Using Electronics Probe , Surface plate |
| Height Gauge ( Vernier , Dial , Digital) 0.01 mm | 0 to 300 mm | Using Caliper checker , Surface plate , Lever Dial |
| Height Gauge ( Vernier , Dial , Digital) 0.01 mm | 0 to 600 mm | Using Caliper checker , Surface plate , Lever Dial |
| Height Gauge ( Vernier , Dial , Digital) 0.02 mm | 0 to 1000 mm | Using Length , Surface plate , Lever Dial |
| Height Master ( Pitch Block Accuracy) | 0 to 600 mm | Using Linear height 2d , Surface plate , Gauge block (0- Grade) |
| Internal /Stick Micrometer L.C =0.001 mm | 50 mm to 500 mm | Using Gauge block-O grade with accessories and Caliper checker |
| Internal /Stick Micrometer L.C =0.01 mm | 5 mm to 500 mm | Using G blocks (0- Grade)with acc.+ Caliper checker |
| Linear / Electronics-2 D Height Gauge (LC=0.0001 mm) | 0 to 600 mm | Using Length Bar, Gauge Block ( 0 Grade) , Surface plate, Master Cylinder |
| Measuring Pins | 0.1 mm to 20 mm | Using Length measuring M/C |
| Metric Steel scales | 0 to 2000 mm | Using Scale & Tape calibration unit |
| Metric Steels/ Woven Metallic / Fiber Tapes | 0 to 50 meter | Using Scale & Tape calibration unit |
| Micrometer Head L.C =0.001 mm | 0 to 50 mm | Using LMM |
| Micrometer Setting Rod /Length Bar | 100 mm to 200 mm | Using Length Measuring M/C, 0- Grade slip gauges , Setting Plug |
| Micrometer Setting Rod /Length Bar | 200 mm to 500 mm | Using Length Bar ,Plunger Dial with Comparator stand |
| Micrometer Setting Rod /Length Bar | 25 mm to 100 mm | Using Length Measuring M/C |
| Micrometer Setting Rod /Length Bar | 500 mm to 1000 mm | Using Length Bar ,Plunger Dial with Comparator stand |
| Pie Tape | 15 mm to 320 mm | Using Scale & Tape calibration unit |
| Plain Ring Gauge( Setting /Master) | 100 mm to 180 mm | Using LMM |
| Plain Ring Gauge( Setting /Master) | 3 mm to 100 mm | Using Length measuring M/C |
| Plain Plug Gauge | 1 mm to 100 mm | Using Length measuring M/C |
| Plain Plug Gauge | 100 mm to 270 mm | Using LMM |
| Plain/ Magnetic V Block ( Flatness , Perpendicularity) | Upto 200 mm | Using Surface plate , Lever dial , Test Mandrels , Cylindrical Work piece, Height gauge for Holding |
| Plain/ Magnetic V Block ( Parallelism ) | Upto 200 mm | Using Surface plate , Lever dial , Test Mandrels , Cylindrical Work piece, Height gauge for Holding |
| Profiel / Form Gauges (Linear Dim.) | Upto 200 mm | Using Profile Projector |
| Profile / Form Gauges ( Angle measurement) | Upto 60 deg. | Using Profile Projector |
| Radius Gauge | 0.6 mm to 100 mm | Using Profile Projector |
| Sine Bar -Angular Measuremnets | upto 300 mm | Using Angle Gauges , Electronics Probe, Lever dial , Surface plate , Height gauge, Gauge Block( 0- Grade) |
| Snap Gauge | 100 mm to 180 mm | Using LMM |
| Snap Gauge | 3 mm to 100 mm | Using Length measuring M/C |
| Spirit Level LC (0.02 mm/mtr) | Upto 300 mm (Base length) mm | Using Robust Tilting Table , Electronics level , Dial indicator( lever) , Height gauge, surface plate |
| Straight Edge ( I- Section) - Straightness, Parallelism | Upto 6000 X 50 mm | Using Electronics Level |
| Surface Plate , Comparator Stand ( Granite & Cast Iron) -Flatness Deviation | Up to 6000 X 6000 mm | Using Electronics level |
| Test Mandrels- Straight (Straightness & Run out) | upto 500 mm | Using Bench Center ,Dial Indicator ( Lever) |
| Test Sieves - Aperture size | 0.04 mm to 4.0 mm | Using Profile projector |
| Test Sieves - Aperture size | 4.0 mm to 125 mm | Using Digital caliper |
| Thread Pitch Gauge/ Micrometer- Flank Angle | UPTO 60 degree | Using Profile Projector |
| Thread Pitch Gauge/ Micrometer- Pitch accuracy | 0.25 mm to 6.0 mm | Using Profile Projector |
| Thread plug/ WCP Gauge-Effective Diameter | 1 mm to 100 mm | Using Length measuring M/C , |
| Thread plug/ WCP Gauge-Effective Diameter | 100 mm to 180 mm | Usimh LMM |
| Thread Ring/ Wear checking Ring GaugeEffective Dia. | 3 mm to 100 mm | Using Length measuring M/C. |
| Three Pin Micrometer LC=0.001 mm | 15 mm to 65 mm | Using set of Ring gauges |
| Ultrasonic Thickness Gauge LC= 0.001 mm | 1.2 mm to 100 mm | Using Gauge Block- 0- Grade |
| Vernier Depth Gauge LC=0.001 mm | 0 to 200 mm | Using Length Bar Grade -0 Gauge Block ,Lever dial Surface plate , Holding fixture |
| Caliper Checker /Check Master | 0 to 600 mm | Using Caliper checker / Length Bar (As a comparator ,Linear height 2D)+, Surface Plate |
| Dial calibration Tester LC=0.001 mm | 0 to 25 mm | Using Electronics Probe , Gauge Block (0-Grade) |
| Electronics Probe LC= 0.01/0.1 micron | 0 to 25 mm | Using Gauge Block, Slip Gauges ( 0- Grade) . Surface Plate |
| Gauge Block Comparators LC=0.01 micron | 0 to 100 mm | Using Gauge Block set - Slip gauges (K- Grade ) , |
| Gauge Block Accessories - Flatness | Upto 250 mm | Using Optical Flat, Surface Plate , Electronics probe |
| Gauge Block Accessories - Parallelism | Upto 250 mm | Using Optical Flat, Surface Plate , Electronics probe |
| Gauge Block- Slip gauges | 0.5 mm to 10 mm | Using Gauge Block set (KGrade)& Gauge Block Calibrator |
| Gauge Block- Slip gauges | 25 mm to 50 mm | Using Gauge Block set (KGrade)& Gauge Block Calibrator |
| Gauge Block- Slip gauges | 50 mm to 100 mm | Using Gauge Block set (KGrade)& Gauge Block Calibrator |
| Gauge Blocks- Slip gauges | 10 mm to 25 mm | Using Gauge Block set (KGrade)& Gauge Block Calibrator |
| Optical Flat Type A - Flatness | UPTO 50 mm | Using Master Optical Flat, Monochromatic light source |
| Optical Parallel - Flatness , Parallelism | Upto 50 mm | Using Master Flat, Monochromatic light source , Two Probe comparator |
| Roughness Master ( Ra value) | Ra-2.92 µm | Using Surface Roughness Tester |
| Spline Plug . Ring Gauge - Diameter over pin | 10 mm to 100 mm | Using Length measuring M/C+Measuring Pins |
| Surface Roughness Tester(Portable) ( Ra = 3.20 ,2.9 value) Two Point only | Ra-2.94 ,3.20 µm | Using Roughness Master |
| Rubber Hardness Tester 100 shore A , LC=1 shore A | Upto 100 Shore A | Using Weighing balance having d=0.1 g (for Spring Balance) |
| Rubber Hardness Tester 100 shore D , LC=1 shore D | Upto 100 shore D | Using Weighing balance having d=0.1 g (for Spring Balance) |
| Push Pull gauge/ Force gauge (In Push Pull mode) | 5 N to 1000 N PULL Mode 500 N PUSH Mode | Using Dead weight and loading hangers as per VDI/VDE-2624 |
| Offerings | Technical Specification | Description |
|---|---|---|
| Air Gauge Unit | Upto +/-100 µm | Using Setting Ring gauge |
| Bench Center (Coaxiality / Run out , Parallelism | Upto 3000 mm | Using Test Mandrel ( Taper / Straight) , Lever dia |
| Gear Rolling Tester | Upto 500 mm | Using Gauge Block ( 0- Grade)+ Plunger Dial |
| Linear / Electronics-2 D Height Gauge (LC=0.0001 mm) | 0 to 600 mm | Using Length Bar, Gauge Block ( 0 Grade) , Surface plate, Master Cylinder |
| Straight Edge ( ISection) - Straightness, Parallelism | Upto 6000 X 50 mm | Using Electronics Level |
| Surface Plate , Comparator Stand ( Granite & Cast Iron) -Flatness Deviation | Up to 6000 X 6000 mm | Using Electronics level |
| Dial calibration Tester LC=0.001 mm | 0 to 25 mm | Using Electronics Probe , Gauge Block (0-Grade) |
| Electronics Probe LC= 0.01/0.1 micron | 0 to 25 mm | Using Gauge Block, Slip Gauges ( 0- Grade) . Surface Plate |
| Gauge Block Comparators LC=0.01 micron | 0 to 100 mm | Using Gauge Block set - Slip gauges (K- Grade ) , |
| Profile Projector - Angle , LC=1 sec. | 0 degree to 360 degree | Using Angle gauges |
| Profile Projector - Linear . LC=0.001 mm | 0 to 200 mm | Using Glass scale |
| Profile Projector - Magnification | 10 X % to 100X % | Using Gauge Block (0- Grade) , Digital Caliper |
| Universal / Length measuring M/C , LC=0.1micron | 0 to 100 mm | Using Gauge Block (KGrade) |
